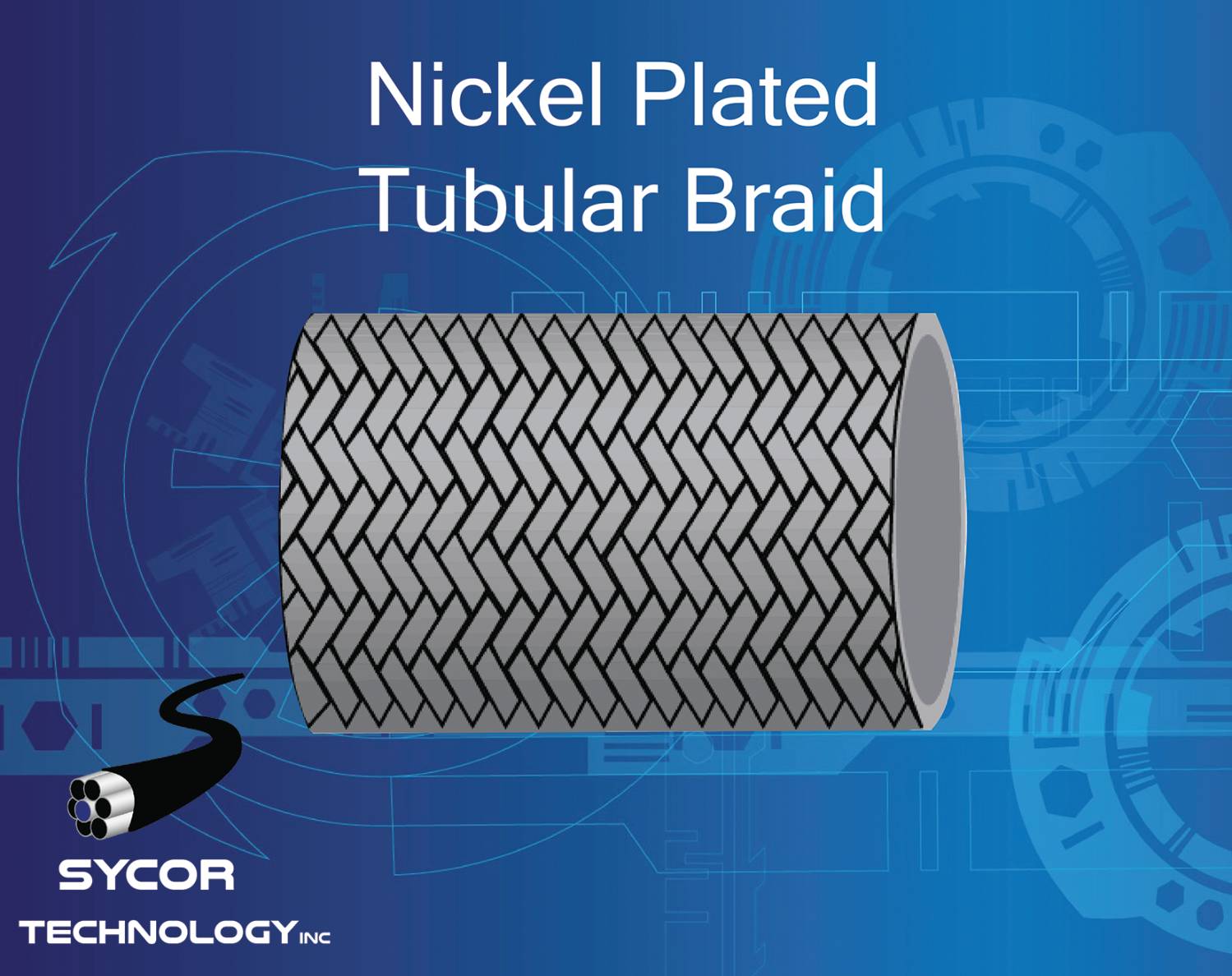

Nickel Plated Tubular Braid
Nickel Plated Tubular Braid
| Sycor Part No | Braid Size AWG | Nom. Inside Dia. (In) | Temp | Approx Weight LBS./MFT | Circular Mil Area | # of Wires | Std per Carrier | # of carriers | AWG of Strand | |
|---|---|---|---|---|---|---|---|---|---|---|
| A0C24236NT | 19 | 1/16 | 400°C | 4 | 1,200 | 48 | 24 | 2 | 36 |
|
| A0C24436NT | 16 | 7/64 | 400°C | 8.2 | 2,400 | 96 | 24 | 4 | 36 |
|
| A0C24536NT | 15 | 1/8 | 400°C | 10.3 | 3,000 | 120 | 24 | 5 | 36 |
|
| A0C24836NT | 13 | 3/16 | 400°C | 16.3 | 4,800 | 192 | 24 | 8 | 36 |
|
| A0C24834NT | 11 | 1/4 | 400°C | 27.9 | 7,632 | 192 | 24 | 8 | 34 |
|
| A0C48636NT | 12 | 5/16 | 400°C | 24.2 | 7,200 | 288 | 48 | 6 | 36 |
|
| A0C48836NT | 10 | 3/8 | 400°C | 34.5 | 9,600 | 384 | 48 | 8 | 36 |
|
| A0C48634NT | 10 | 7/16 | 400°C | 39.3 | 11,434 | 288 | 48 | 6 | 34 |
|
| A0C481136NT | 9 | 1/2 | 400°C | 47.7 | 13,200 | 528 | 48 | 11 | 36 |
|
| A0C481536NT | 8 | 5/8 | 400°C | 59.4 | 18,000 | 720 | 48 | 15 | 36 |
|
| A0C481836NT | 7 | 3/4 | 400°C | 73.5 | 21,600 | 864 | 48 | 18 | 36 |
|
| A0C481032NT | 5 | 7/8 | 400°C | 100 | 30,720 | 480 | 48 | 10 | 32 |
|
| A0C48830NT | 4 | 1 | 400°C | 135 | 38,400 | 384 | 48 | 8 | 30 |
|
| A0C481130NT | 3 | 1-3/8 | 400°C | 180 | 52,800 | 528 | 48 | 11 | 30 |
|
| A0C481230NT | 3 | 1-1/2 | 400°C | 195 | 57,600 | 576 | 48 | 12 | 30 |
|
| A0C481430NT | 2 | 1-7/8 | 400°C | 225 | 67,200 | 672 | 48 | 14 | 30 |
|
| A0C481630NT | 1 | 2-1/4 | 400°C | 255 | 76,800 | 768 | 48 | 16 | 30 |
|
Additional configurations may be available upon request. Please contact us to enquire.
You may also be interested in tin-plated tubular braid or silver-plated tubular braid.
Description of Nickel Tubular Braid:
Nickel tubular braided wire with nickel-plated copper may be used when exposed to very high temperatures or where corrosion resistance is necessary. It comes in a variety of widths and constructions and is most often used for wire protection against physical damage or to shield wires from signal interference.
Construction of Nickel Tubular Braid:
Uninsulated, soft drawn solid nickel
plated copper conductors are woven or
braided into a tubular configuration.
Approvals of Nickel Tubular Braid:
A-A-59569
(Supercedes QQ-B 575)
Copper Strand(s) meet(s) ASTM B3 (Bare), B33(Tinned)
Application of Nickel Tubular Braid:
Value-Added Services for Nickel Tubular Braid:
All specifications are provided for reference only. Specifications will vary between manufacturers and are subject to change without notice. Be sure to check with your sales rep for the most accurate and up to date information when ordering.
