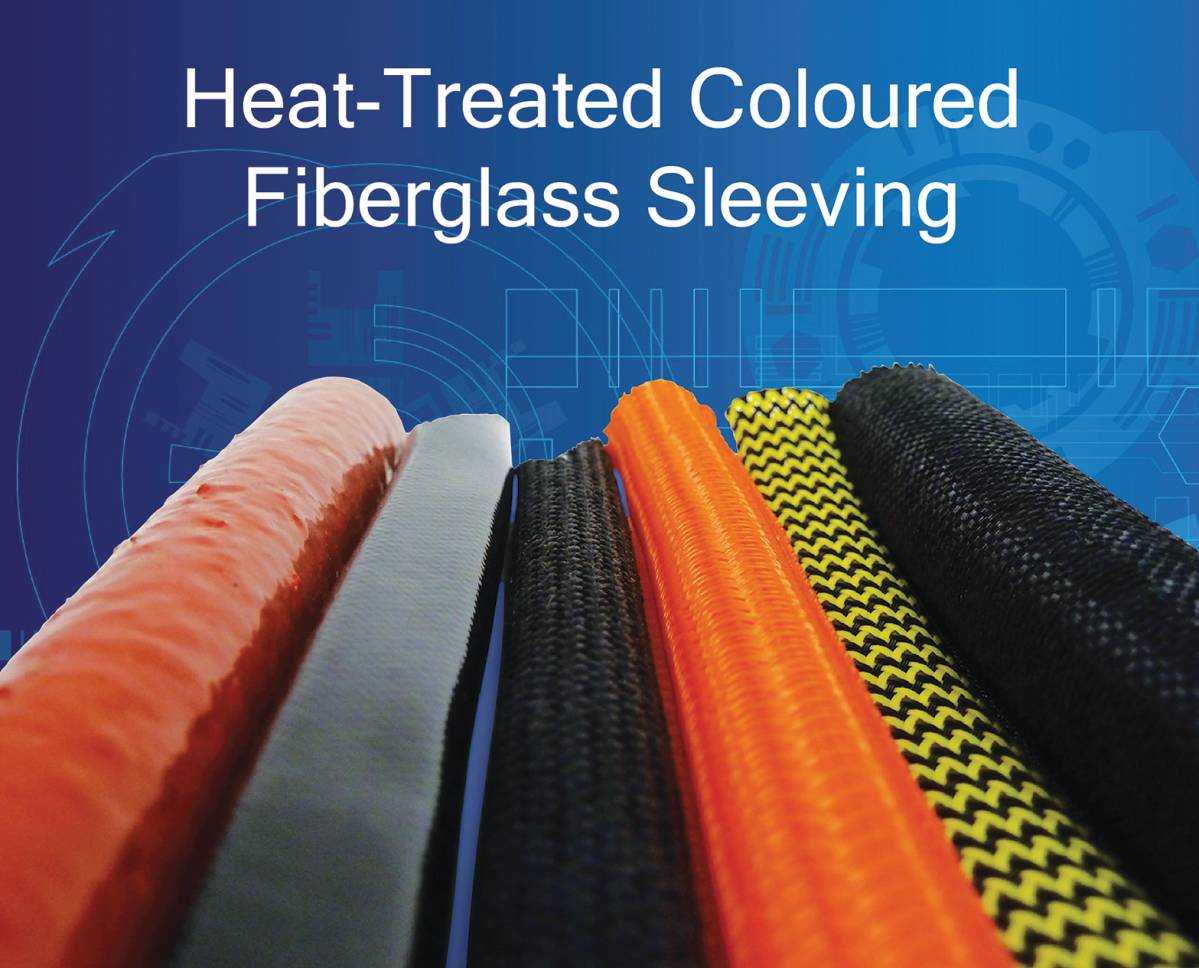

Heat-Treated Coloured Fiberglass Sleeving

Download Spec Sheet More info!

Sycor Part No	AWG	Grades	Min Inside Dia.	Nom. Inside Dia. (In)	Max Inside Dia.	Standard Wall Thickness	Heavy Wall Thickness	Temp
T3B24C3D	24	Grade C3	0.02	0.022	0.027	0.020	-	240°C
T3B22C3D	22	Grade C3	0.025	0.027	0.032	0.020	-	240°C
T3B20C3D	20	Grade C3	0.032	0.034	0.039	0.020	-	240°C
T3B19C3D	19	Grade C3	0.036	0.040	0.044	0.020	-	240°C
T3B18C3D	18	Grade C3	0.040	0.042	0.049	0.020	-	240°C
T3B17C3D	17	Grade C3	0.045	0.047	0.054	0.020	-	240°C
T3B16C3D	16	Grade C3	0.051	0.053	0.061	0.020	0.032	240°C
T3B15C3D	15	Grade C3	0.057	0.059	0.067	0.020	0.032	240°C
T3B14C3D	14	Grade C3	0.064	0.066	0.074	0.020	0.032	240°C
T3B13C3D	13	Grade C3	0.072	0.075	0.082	0.020	0.032	240°C
T3B12C3D	12	Grade C3	0.081	0.085	0.091	0.020	0.032	240°C
T3B11C3D	11	Grade C3	0.091	0.095	0.101	0.020	0.032	240°C
T3B10C3D	10	Grade C3	0.102	0.106	0.112	0.020	0.032	240°C
T3B09C3D	9	Grade C3	0.114	0.118	0.124	0.020	0.032	240°C
T3B08C3D	8	Grade C3	0.129	0.133	0.141	0.020	0.032	240°C
T3B07C3D	7	Grade C3	0.144	0.148	0.158	0.020	0.032	240°C
T3B06C3D	6	Grade C3	0.162	0.166	0.178	0.020	0.032	240°C
T3B05C3D	5	Grade C3	0.182	0.186	0.198	0.020	0.032	240°C
T3B04C3D	4	Grade C3	0.204	0.208	0.224	0.020	0.032	240°C
T3B03C3D	3	Grade C3	0.229	0.208	0.249	0.020	0.032	240°C
T3B02C3D	2	Grade C3	0.258	0.263	0.278	0.020	0.032	240°C
T3B01C3D	1	Grade C3	0.289	0.294	0.311	0.020	0.032	240°C
T3B00C3D	0	Grade C3	0.325	0.330	0.347	0.020	0.032	240°C
T3B.375C3D	3/8	Grade C3	0.375	0.375	0.399	0.020	0.032	240°C
T3B.437C3D	7/16	Grade C3	0.438	0.438	0.462	0.020	-	240°C
T3B.500C3D	1/2	Grade C3	0.500	0.500	0.524	0.020	-	240°C
T3B.625C3D	5/8	Grade C3	0.625	0.625	0.655	0.020	-	240°C
T3B.750C3D	3/4	Grade C3	0.750	0.750	0.786	0.020	-	240°C
T3B.875C3D	7/8	Grade C3	0.875	0.875	0.911	0.020	-	240°C
T3B1.0C3D	1	Grade C3	1.00	1.00	1.036	0.020	-	240°C

Available in various spool lengths

Download Spec Sheet

Description of Heat-Treated Fiberglass Sleeving:

Sycor’s uncoated heat-treated fibreglass sleeving provides mechanical and thermal protection for wires and cable. This sleeving is extremely flexible and is able to fit easily over irregularly shaped objects. Passing the VW-1 flame test makes heat-treated sleeving very resistant to flames. Colour or dye is applied by saturating the filament with acrylic.

For more information and specifications, check out our chart here.

Voltage Rating of Heat-Treated Fiberglass Sleeving:

Grade C3: No dielectric value guarantee

Construction of Heat-Treated Fiberglass Sleeving:

Heat-treated fiberglass sleeving made of continuous filament E glass. Saturated with colour acrylic binder.

Temperature Rating of Heat-Treated Fiberglass Sleeving:

Class C: 240°C

Application of Heat-Treated Fiberglass Sleeving:

Heat-treated fiberglass sleeving has the ability to continuously provide protection in high-temperature environments. This option is a strong solution for applications where air gap electrical insulation is acceptable when an alternative to heat shrink is required and when protecting wire components in hazardous locations is essential. With additional colouring, the heat-treated coloured fiberglass sleeving makes cable organization easier and faster.

Approvals of Heat-Treated Fiberglass Sleeving:

UL 224 VW1
NEMA TF-2 Type 3

Colour options for Sleeving:

Black Colour 0 Natural Colour NAT

Value-Added Services for Sleeving:

All specifications are provided for reference only. Specifications will vary between manufacturers and are subject to change without notice. Be sure to check with your sales rep for the most accurate and up to date information when ordering.
