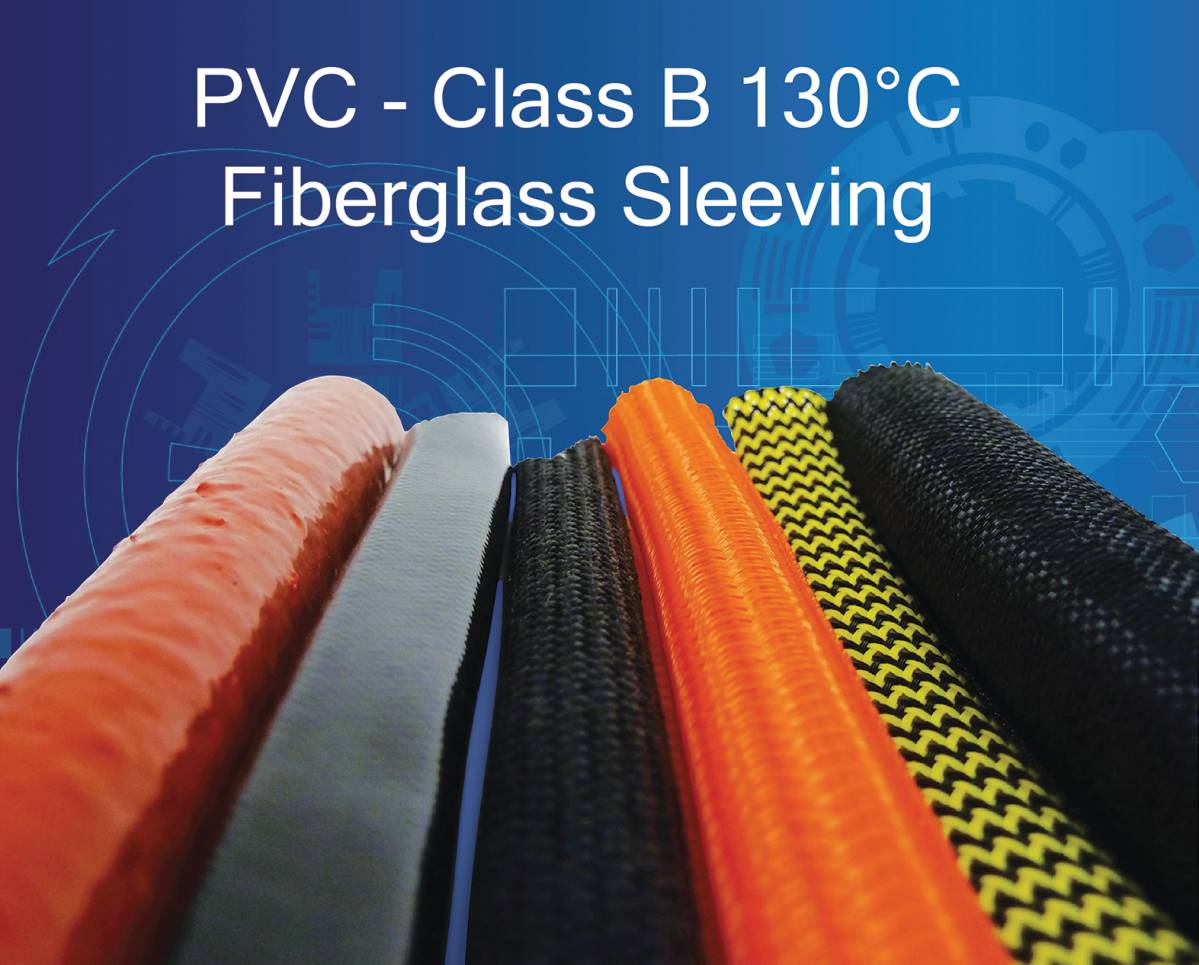

PVC Fiberglass Sleeving (Class B 130°C)
PVC Fiberglass Sleeving (Class B 130°C)
| Sycor Part No | AWG | Grades | Material | Min Inside Dia. | Temp | Voltage Rating | |
|---|---|---|---|---|---|---|---|
| T1BA.020 | 24 | A, B, C | Fiberglass PVC | 0.020 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.025 | 22 | A, B, C | Fiberglass PVC | 0.025 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.032 | 20 | A, B, C | Fiberglass PVC | 0.032 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.040 | 18 | A, B, C | Fiberglass PVC | 0.040 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.045 | 17 | A, B, C | Fiberglass PVC | 0.045 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.051 | 16 | A, B, C | Fiberglass PVC | 0.051 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.057 | 15 | A, B, C | Fiberglass PVC | 0.057 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.064 | 14 | A, B, C | Fiberglass PVC | 0.064 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.072 | 13 | A, B, C | Fiberglass PVC | 0.072 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.081 | 12 | A, B, C | Fiberglass PVC | 0.081 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.091 | 11 | A, B, C | Fiberglass PVC | 0.091 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.102 | 10 | A, B, C | Fiberglass PVC | 0.102 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.114 | 9 | A, B, C | Fiberglass PVC | 0.114 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.129 | 8 | A, B, C | Fiberglass PVC | 0.129 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.144 | 7 | A, B, C | Fiberglass PVC | 0.144 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.162 | 6 | A, B, C | Fiberglass PVC | 0.162 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.182 | 5 | A, B, C | Fiberglass PVC | 0.182 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.204 | 4 | A, B, C | Fiberglass PVC | 0.204 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.229 | 3 | A, B, C | Fiberglass PVC | 0.229 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.258 | 2 | A, B, C | Fiberglass PVC | 0.258 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.289 | 1 | A, B, C | Fiberglass PVC | 0.289 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.325 | 0 | A, B, C | Fiberglass PVC | 0.325 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.375 | 3/8 | A, B, C | Fiberglass PVC | 0.375 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.438 | 7/16 | A, B, C | Fiberglass PVC | 0.438 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.500 | 1/2 | A, B, C | Fiberglass PVC | 0.500 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.625 | 5/8 | A, B, C | Fiberglass PVC | 0.625 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.750 | 3/4 | A, B, C | Fiberglass PVC | 0.750 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA.875 | 7/8 | A, B, C | Fiberglass PVC | 0.875 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
| T1BA1.00 | 1 | A, B, C | Fiberglass PVC | 1.00 | 20°C to +130°C | A-7000V, B-4000V, C-2500V |
|
Replace A in part number above with B for optional grade
Available in various spool lengths
Description of PVC Fiberglass Sleeving:
Sycor’s PVC fibreglass sleeving is designed to fit over wires and has excellent dielectric values and high cut-through resistance. It is generally used whenever wires or cables require added protection to survive in harsh environments, especially at high temperatures. PVC fiberglass sleeving being excellent in high-temperature environments has very good general resistance and stability.
For more information and specifications, check out our chart here.
Approvals of PVC Fiberglass Sleeving:
NEMA & Military Spec.’s
CSA & UL Approved
Construction of PVC Fiberglass Sleeving:
(PVC) Polyvinyl Chloride coated braid
Fiberglass tubular sleeve
Temperature Rating of PVC Fiberglass Sleeving:
Class B: -20°C to +130°C
Application of PVC Fiberglass Sleeving:
Sycor’s PVC fiberglass sleeving is a strong choice because PVC fiberglass insulation is able to protect transformers, different kinds of generators, terminations and even difficult motors. The PVC Sleeve coating makes this construction functional at low and high temperatures, while still being effective for indoor and outdoor use.
Voltage Rating of PVC Fiberglass Sleeving:
Grade: A - 7000V
B - 4000V
C - 2500V
Colour options for PVC Sleeving:
Value-Added Services for PVC Sleeving:
All specifications are provided for reference only. Specifications will vary between manufacturers and are subject to change without notice. Be sure to check with your sales rep for the most accurate and up to date information when ordering.
